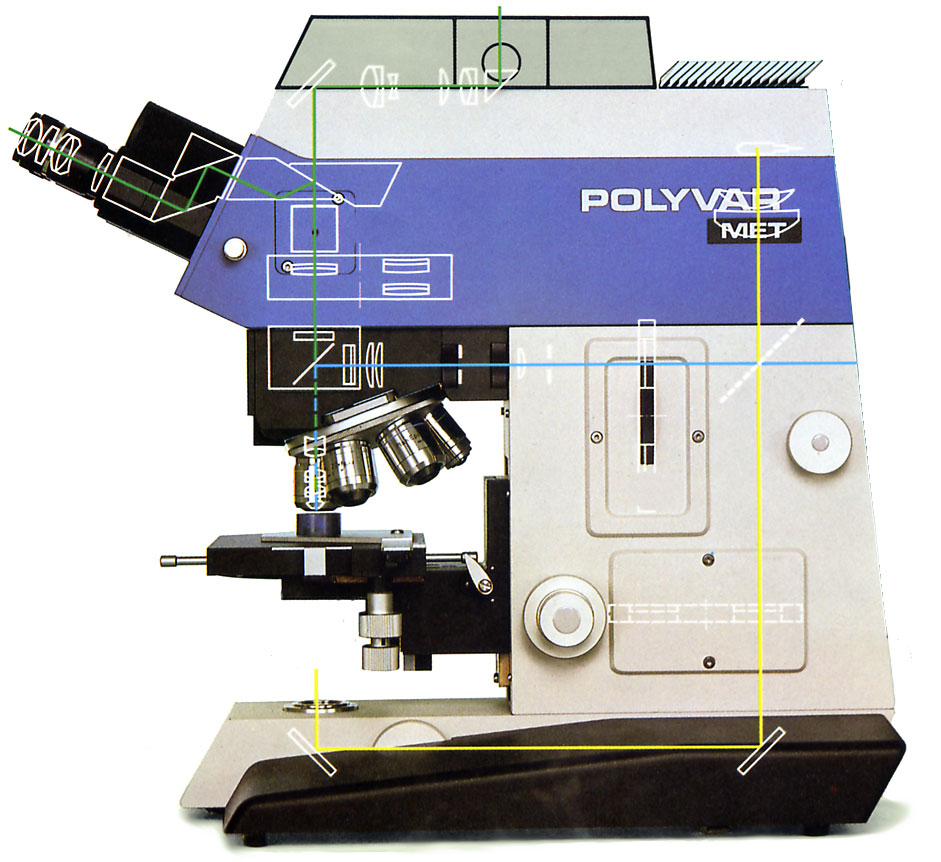

The Polyvar Met is a research microscope capable of a wide range of incident and transmitted light techniques.
|
|
The polyvar optical system produces accurate images of extremely large object fields. The objectives are plan achromates and plan fluorites for infinite tube lengths and have a high brilliance, resolution and flatness of field. Standard, long working distance (LWD) and extra-long working distance (XLWD) objectives are available. With x10 widefield eyepieces the viewing angle is 51°. The range of magifications available is 16x to 2000x and complies with DIN and ASTM standards.
|
|
Illumination is provided by a 100 Watt halogen lamp with a colour temperature of 3200K.
|
|
The stage is stepper motor driven in x and y directions with step size of 0.5µm. The stage travel is 100 x 100mm. The stage can be programmed raster with continuous or step motion.
|
The following modules are available:
- Brightfield
- Darkfield
- Polarised light
- Interference contrast
- Epi-fluorescence
| Epi-fluorescence module type | incident light exciter
band-pass | dichroic mirror | barrier filter
long-pass |
| B1, blue | 450-495nm | 510nm | 520nm |
| G1, narrow band green | 450-495nm | 510nm | 520nm |
|
Photographic System
- Polaroid 4" x 5" camera
- Nikon Coolpix 995 camera
|
Dual Reflex Module
The dual reflex module is an optical beam splitter which can be used for:
- Measuring graticle projection
- Macroscopy
- Photography (Nikon Coolpix)
- TV output (Nikon Coolpix)
- Image analysis
|
- Polaroid camera
- 35mm camera

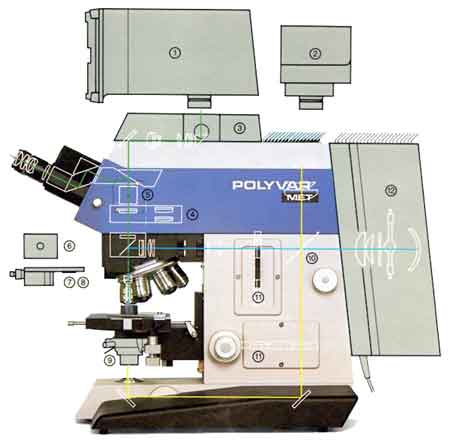

- Camera module
- Magnification module
|
- Dual relex module
- Incident light module
- Interference contrast module
- Interferometer module
| - Transmitted light condensors
- Mirror module
- Filter module
- High intensity lamp
|
| ASTM E3-01 | Standard Practice for Preparation of Metallographic Specimens |
| ASTM E7-00 | Standard Terminology Relating to Metallography |
| ASTM E45-97e2 | Standard Test Methods for Determining the Inclusion Content of Steel |
| ASTM E-112-96e1 | Standard Test Methods for Determining Average Grain Size |
| ASTM E175-82(1999)e1 | Standard Terminology of Microscopy |
| ASTM E-340-00 | Standard Test Method for Macroetching Metals and Alloys |
| ASTM E381-01 | Standard Method of Macroetch Testing Steel Bars, Billets, Blooms, and Forgings |
| ASTM E-407-99 | Standard Practice for Microetching Metals and Alloys |
| ASTM E562-99e1 | Standard Test Method for Determining Volume Fraction by Systematic Manual Point Count |
| ASTM E768-99 | Standard Practice for Preparing and Evaluating Specimens for Automatic Inclusion Assessment of Steel |
| ASTM E883-99 | Standard Guide for Reflected-Light Photomicrography |
| ASTM E930-99 | Standard Test Methods for Estimating the Largest Grain Observed in a Metallographic Section (ALA Grain Size) |
| ASTM E1122-96 | Standard Practice for Obtaining JK Inclusion Ratings Using Automatic Image Analysis |
| ASTM E1180-94(1998) | Standard Practice for Preparing Sulfur Prints for Macrostructural Examination |
| ASTM E1181-87(1998)e1 | Standard Test Methods for Characterizing Duplex Grain Sizes |
| ASTM E1182-93(1998) | Standard Test Method for Measurement of Surface Layer Thickness by Radial Sectioning |
| ASTM E1245-00 | Standard Practice for Determining the Inclusion or Second-Phase Constituent Content of Metals by Automatic Image Analysis |
| ASTM E1268-99 | Standard Practice for Assessing the Degree of Banding or Orientation of Microstructures |
| ASTM E1382-97 | Standard Test Methods for Determining Average Grain Size Using Semiautomatic and Automatic Image Analysis |
| ASTM E1558-99 | Standard Guide for Electrolytic Polishing of Metallographic Specimens
|
